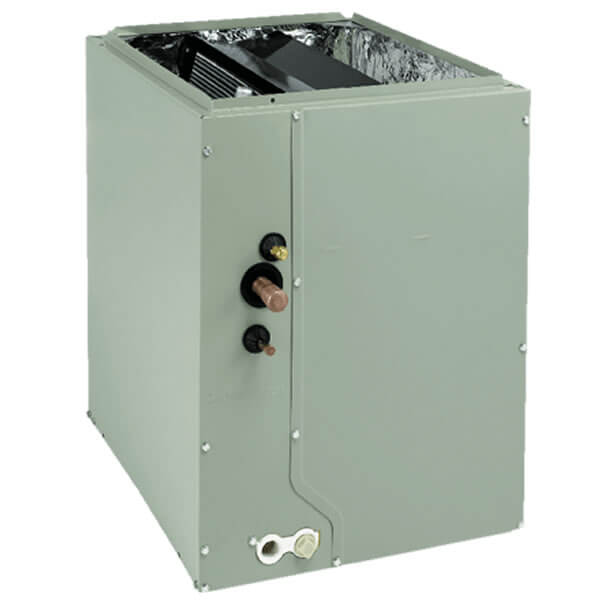

Trane Comfort™ Coil
Trane Comfort™ Coil
Description
Our Trane evaporator coils are specifically designed to work in union with your Trane outdoor condensing unit and furnace. They are carefully matched in size, efficiency and capacity to ensure optimal comfort and efficiency. Trane’s new enhanced fin design was developed to provide superior humidity control with the reliability and efficiency you expect.
Trane can help you make a perfect match
An AHRI matched Trane system gives you guaranteed performance and efficiency. When you install a new Trane air conditioner or heat pump, your dealer can help you select the right Heat Pump or Air Conditioner evaporator coil to match your home’s needs. Remember, your outdoor condensing unit and your indoor coil work together as a team—a new air conditioner’s efficiency will be significantly reduced if it’s paired with an old, existing coil or a non-Trane coil. An older coil, or a non-Trane coil, may even differ in cooling capacity and performance, leaving you with an unbalanced system and higher-than-necessary utility bills.
All-aluminum Comfort™ coils
With a strong heritage in aluminum outdoor coils, Trane has applied our innovative thinking to develop the industry’s first all-aluminum indoor coil. Rust-resistant and reduced levels of corrosion, our all-aluminum evaporator coils set a new industry standard by reducing leaks that often occur from corrosives like salt or common household cleaning products.
Tested for durability
Like all of the components in our high-quality home comfort systems, each evaporator coil goes through a rigorous testing stage to ensure durability and reduce leaks. We test each coil with burst pressures of 500 pounds per square inch followed by a Helium mass spectrometer. This allows us to detect a leak as small as .10 ounce per year. A small amount, we know, but because any leak will lower your system’s efficiency, any leak is unacceptable. Lasting durability means your home will be comfortable and efficient now and for years to come.
Peace of Mind
Indoor coils are often dirty because they’re usually difficult to clean. But all Trane Comfort™ Coils are designed for easy cleaning. Trane evaporator coils are made with 100% foil-backed insulation, so they can be easily wiped down. Also, all Trane Comfort™ Coils are professionally washed clean of manufacturing agents before being assembled. The result is a cleaner coil and cleaner air for your family and higher performance for your home.
Multi-Positional
| model | nominal capacity range (btuh) | nominal tons | height (in.) | width (in.) | depth (in.) |
|---|---|---|---|---|---|
| 4TXCA002DS3HCA | 18,000 – 24,000 | 1.5 – 2.0 | 17.5″ | 14.5″ | 21.5″ |
| 4TXCB003DS3HCA | 18,000 – 36,000 | 1.5 – 3.0 | 17.5″ | 17.5″ | 21.5″ |
| 4TXCB004DS3HCA | 24,000 – 42,000 | 2.0 – 3.5 | 22.5″ | 17.5″ | 21.5″ |
| 4TXCC005DS3HCA | 24,000 – 48,000 | 2.0 – 4.0 | 22.5″ | 21.0″ | 21.5″ |
| 4TXCB006DS3HCA | 24,000 – 48,000 | 2.0 – 4.0 | 26.9″ | 17.5″ | 21.5″ |
| 4TXCC007DS3HCA | 36,000 – 60,000 | 3.0 – 5.0 | 26.9″ | 21.0″ | 21.5″ |
| 4TXCD008DS3HCA | 36,000 – 60,000 | 3.0 – 5.0 | 26.9″ | 24.5″ | 21.5″ |
| 4TXCC009DS3HCA | 42,000 – 60,000 | 3.5 – 5.0 | 30.7″ | 21.0″ | 21.5″ |
| 4TXCD010DS3HCA | 42,000 – 60,000 | 3.5 – 5.0 | 30.7″ | 24.5″ | 21.5″ |
Upflow
| model | nominal capacity range (btuh) | nominal tons | height (in.) | width (in.) | depth (in.) |
|---|---|---|---|---|---|
| 4PXCAU24BS3HAA | 18,000 – 24,000 | 1.5 – 2.0 | 17.5″ | 14.5″ | 21.5″ |
| 4PXCBU24BS3HAA | 18,000 – 24,000 | 1.5 – 2.0 | 17.5″ | 17.5″ | 21.5″ |
| 4PXCBU30BS3HAA | 18,000 – 36,000 | 1.5 – 3.0 | 17.5″ | 17.5″ | 21.5″ |
| 4PXCCU30BS3HAA | 18,000 – 36,000 | 1.5 – 3.0 | 17.5″ | 21.0″ | 21.5″ |
| 4PXCBU36BS3HAA | 24,000 – 42,000 | 2.0 – 3.5 | 22.5″ | 17.5″ | 21.5″ |
| 4PXCCU36BS3HAA | 24,000 – 48,000 | 2.0 – 4.0 | 22.5″ | 21.0″ | 21.5″ |
| 4PXCBU42BS3HAA | 24,000 – 42,000 | 2.0 – 3.5 | 26.9″ | 17.5″ | 21.5″ |
| 4PXCCU42BS3HAA | 30,000 – 42,000 | 2.5 – 3.5 | 26.9″ | 21.0″ | 21.5″ |
| 4PXCBU48BS3HAA | 24,000 – 48,000 | 2.0 – 4.0 | 26.9″ | 17.5″ | 21.5″ |
| 4PXCCU48BS3HAA | 36,000 – 60,000 | 3.0 – 5.0 | 26.9″ | 21.0″ | 21.5″ |
| 4PXCDU48BS3HAA | 36,000 – 60,000 | 3.0 – 5.0 | 26.9″ | 24.0″ | 21.5″ |
| 4PXCCU60BS3HAA | 42,000 – 60,000 | 3.5 – 5.0 | 30.7″ | 21.0″ | 21.5″ |
| 4PXCDU60BS3HAA | 42,000 – 60,000 | 3.5 – 5.0 | 30.7″ | 24.5″ | 21.5″ |
Downflow
| model | nominal capacity range (btuh) | nominal tons | height (in.) | width (in.) | depth (in.) |
|---|---|---|---|---|---|
| 4PXCAD24BS3HDA | 18,000 – 24,000 | 1.5 – 2.0 | 17.5″ | 14.5″ | 21.5″ |
| 4PXCBD24BS3HDA | 18,000 – 24,000 | 1.5 – 2.0 | 17.5″ | 17.5″ | 21.5″ |
| 4PXCBD30BS3HDA | 18,000 – 30,000 | 1.5 – 3.0 | 17.5″ | 17.5″ | 21.5″ |
| 4PXCCD30BS3HDA | 18,000 – 30,000 | 1.5 – 3.0 | 17.5″ | 21.0″ | 21.5″ |
| 4PXCBD36BS3HDA | 24,000 – 36,000 | 2.0 – 3.0 | 22.5″ | 17.5″ | 21.5″ |
| 4PXCCD36BS3HDA | 24,000 – 36,000 | 2.0 – 3.0 | 22.5″ | 21.0″ | 21.5″ |
| 4PXCBD42BS3HDA | 30,000 – 42,000 | 2.5 – 3.5 | 26.9″ | 17.5″ | 21.5″ |
| 4PXCCD42BS3HDA | 30,000 – 42,000 | 2.5 – 3.5 | 26.9″ | 21.0″ | 21.5″ |
| 4PXCBD48BS3HDA | 36,000 – 48,000 | 3.0 – 4.0 | 26.9″ | 17.5″ | 21.5″ |
| 4PXCCD48BS3HDA | 36,000 – 48,000 | 3.0 – 4.0 | 26.9″ | 21.0″ | 21.5″ |
| 4PXCDD48BS3HDA | 36,000 – 48,000 | 3.0 – 4.0 | 26.9″ | 24.0″ | 21.5″ |
| 4PXCCD60BS3HDA | 48,000 – 60,000 | 4.0 – 5.0 | 30.7″ | 21.0″ | 21.5″ |
| 4PXCDD60BS3HDA | 48,000 – 60,000 | 4.0 – 5.0 | 30.7″ | 24.5″ | 21.5″ |
Aluminum High Efficiency Staged System Uncased Upflow Only Coil
| model | nominal capacity | nominal tons | height (in.) | width (in.) | depth (in.) |
|---|---|---|---|---|---|
| 4PXAAU24BS3HAA | 24000 | 2.0 | 14.7 | 13.3 | 21.1 |
| 4PXABU24BS3HAA | 24000 | 2.0 | 14.5 | 16.3 | 21.1 |
| 4PXABU30BS3HAA | 30000 | 2.5 | 15.8 | 16.3 | 21.1 |
| 4PXACU30BS3HAA | 30000 | 2.5 | 15.8 | 19.8 | 21.1 |
| 4PXABU36BS3HAA | 36000 | 3.0 | 21.2 | 16.3 | 21.1 |
| 4PXACU36BS3HAA | 36000 | 3.0 | 20.8 | 19.8 | 21.1 |
| 4PXABU42BS3HAA | 42000 | 3.5 | 23.8 | 16.3 | 21.1 |
| 4PXACU42BS3HAA | 42000 | 3.5 | 23.7 | 19.8 | 21.1 |
| 4PXABU48BS3HAA | 48000 | 4.0 | 25.3 | 16.3 | 21.1 |
| 4PXACU48BS3HAA | 48000 | 4.0 | 24.9 | 19.8 | 21.1 |
| 4PXADU48BS3HAA | 48000 | 4.0 | 24.5 | 23.3 | 21.1 |
| 4PXACU60BS3HAA | 60000 | 5.0 | 29.2 | 19.8 | 21.1 |
| 4PXADU60BS3HAA | 60000 | 5.0 | 28.5 | 23.3 | 21.1 |
Aluminum Cased Horizontal Flat Coils
| model | nominal capacity | nominal tons | height (in.) | width (in.) | depth (in.) |
|---|---|---|---|---|---|
| 4TXFH024CZ3HHB | 24000 | 2.0 | 22.7 | 10.2 | 37.5 |
| 4TXFH033CC3HHB | 34000 | 3.0 | 22.7 | 10.2 | 28.2 |
| 4TXFH036CZ3HHB | 36000 | 3.0 | 22.7 | 10.2 | 37.5 |
| 4TXFH041CC3HHB | 44000 | 4.0 | 22.7 | 10.2 | 37.5 |
| 4TXFH054CC3HHB | 58000 | 5.0 | 22.7 | 10.2 | 37.5 |
| 4TXFH064AZ3HHA | 61000 | 5.0 | 28.7 | 10.2 | 37.5 |
Aluminum Cased Coil Convertible (Upflow/Downflow/Horizontal Left or Right)
| model | nominal capacity range (btuh) | nominal tons | height (in.) | width (in.) | depth (in.) |
|---|---|---|---|---|---|
| 4MXCA001AC6HCA | 18000 – 30000 | 1.5 – 2.5 | 20 | 14.5 | 21 |
| 4MXCB002AC6HCA | 18000 – 30000 | 1.5 – 2.5 | 20 | 17.5 | 21 |
| 4MXCA003AC6HCA | 24000 – 36000 | 2.0 – 3.0 | 20 | 14.5 | 21 |
| 4MXCB004AC6HCA | 24000 – 36000 | 2.0 – 3.0 | 20 | 17.5 | 21 |
| 4MXCC005AC6HCA | 30000 – 36000 | 2.5 – 3.0 | 20 | 21 | 21 |
| 4MXCB006AC6HCA | 36000 – 48000 | 3.0 – 4.0 | 26 | 17.5 | 21 |
| 4MXCC007AC6HCA | 36000 – 48000 | 3.0 – 4.0 | 26 | 21 | 21 |
| 4MXCD008AC6HCA | 42000 – 48000 | 3.5 – 4.0 | 26 | 24.5 | 21 |
| 4MXCC009AC6HCA | 42000 – 60000 | 3.5 – 5.0 | 30 | 21 | 21 |
| 4MXCD010AC6HCA | 48000 – 60000 | 4.0 – 5.0 | 30 | 24.5 | 21 |
| 4MXCB016AC6HCA | 36000 – 48000 | 3.0 – 4.0 | 30 | 17.5 | 21 |
| 4MXCC017AC6HCA | 36000 – 48000 | 3.0 – 4.0 | 30 | 21 | 21 |
| 4MXCD018AC6HCA | 42000 – 48000 | 3.5 – 4.0 | 30 | 24.5 | 21 |
Aluminum Cased Coil Convertible (Upflow/Downflow/Horizontal Left or Right)
| model | nominal capacity range (btuh) | nominal tons | height (in.) | width (in.) | depth (in.) |
|---|---|---|---|---|---|
| 4GXCA001AC6HUA | 18000 – 30000 | 1.5 – 2.5 | 20 | 14.5 | 21 |
| 4GXCB002AC6HUA | 18000 – 30000 | 1.5 – 2.5 | 20 | 17.5 | 21 |
| 4GXCA003AC6HUA | 24000 – 36000 | 2.0 – 3.0 | 20 | 14.5 | 21 |
| 4GXCB004AC6HUA | 24000 – 36000 | 2.0 – 3.0 | 20 | 17.5 | 21 |
| 4GXCC005AC6HUA | 30000 – 36000 | 2.5 – 3.0 | 20 | 21 | 21 |
| 4GXCB006AC6HUA | 36000 – 48000 | 3.0 – 4.0 | 26 | 17.5 | 21 |
| 4GXCC007AC6HUA | 36000 – 48000 | 3.0 – 4.0 | 26 | 21 | 21 |
| 4GXCD008AC6HUA | 42000 – 48000 | 3.5 – 4.0 | 26 | 24.5 | 21 |
| 4GXCC009AC6HUA | 42000 – 60000 | 3.5 – 5.0 | 30 | 21 | 21 |
| 4GXCD010AC6HUA | 48000 – 60000 | 4.0 – 5.0 | 30 | 24.5 | 21 |
| 4GXCB016AC6HUA | 36000 – 48000 | 3.0 – 4.0 | 30 | 17.5 | 21 |
| 4GXCC017AC6HUA | 36000 – 48000 | 3.5 – 4.0 | 30 | 21 | 21 |
| 4GXCD018AC6HUA | 42000 – 48000 | 3.5 – 4.0 | 30 | 24.5 | 21 |
The Trane Comfort Coil unit is the industry’s first All-Aluminum coil. With over 10 years of performance, the Trane Comfort Coil has the reliability and efficiency you expect from Trane and the comfort your home deserves.
Below are a few of the features and benefits that are included in the Comfort Coil design:
All Aluminum Construction
All Trane Comfort coils are designed with aluminum, providing superior rust and corrosion benefits over copper designs. Rust and corrosions are a leading cause for coil leaks.
Leak Tested
Our Trane Comfort Coils are pressure tested to levels greater than 500 PSI to identify coils susceptible of leaks.
Cleaned Coils
All Trane Comfort Coils are pressure washed and dried at the factory, reducing risk of water blow-off or air quality from leftover oils and process agents present in the manufacturing process.
Factory Installed TXV
Allows for superior refrigeration management over traditional piston design and eliminates added cost of dealer installing at jobsite.
Foil Backed Insulation
Provides easy cleaning and quiet operation.
Noncorrosive Drain Pan
The two-way, sloped, noncorrosive drain pan prevents standing water, and also helps reduce the growth of mold, mildew and bacteria.
Painted Finish
The durable painted finish increases protection from rust and corrosion, and matches neatly with your Trane furnace for a total system look.
