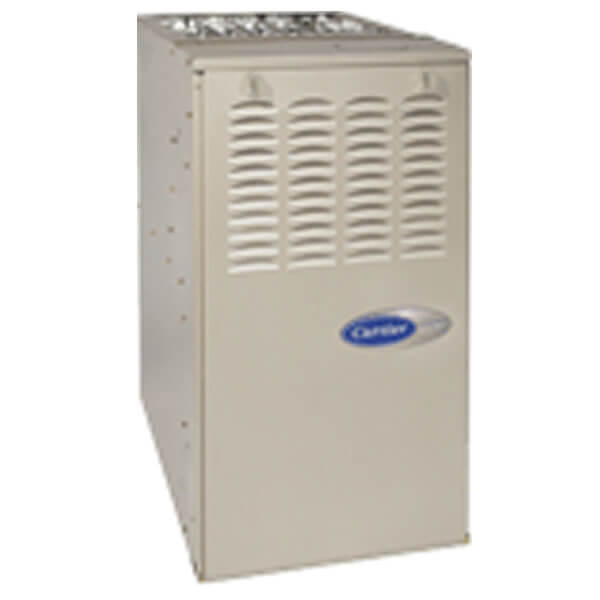

Carrier – Comfort™ 80 Gas Furnace 58DLA

Description

If you live in a Southern area where short, mild winters are balanced with long humid summers this may be a furnace you’ll appreciate.

ComfortFan^™ technology allows you to choose fan speeds in “Constant ON” mode from a compatible thermostat even though the this is a fixed-speed unit.

It also features SmartEvap^™ technology which periodically stops the fan in “Constant ON” modes to give cooling condensation time to drain away. SmartEvap can reduce summer humidity by up to 10%.

Standard Features

• Up to 80.0% AFUE heating efficiency
• Single-stage operation
• Fixed-speed blower motor
• SmartEvap^™ technology works in concert with your cooling system to aid summer dehumidification
• ComfortFan^™ technology allows fan-speed choices in “Constant ON” mode¹
• Fully insulated cabinet
• Low NOx models available (58DLX)
• 10-year parts limited warranty upon timely registration²
• 20-year heat exchanger limited warranty³

Efficiency

• Up to 80.0% AFUE

Performance

• Allows choices of “constant ON” fan speed operation¹
• Hybrid Heat^® compatible

Technology

• Single-stage gas valve
• Fixed-speed, PSC blower motor
• Pilot-free, hot surface PowerHeat^™ ignition
• Fixed-speed inducer motor
• Aluminized steel clamshell-style primary heat exchanger
• Sound reduction: fully insulated cabinet and QuieTech^™ noise reduction
• Recommended controls: Performance^™ Edge^® relative humidity or ComfortZone^™ II thermostats

Capacities

• 44,000-154,000 Btu/h

Installation

• Flexible installation: upflow, downflow or horizontal
• Versatile venting for tight-fit applications

Requirements

• 115 V
• .5″ gas connection
• Convertible to Liquid Propane (LP)

Aesthetics

• 20-gauge, galvanized steel with appliance finish
• Baked on urethane base coat and polyester top coat paint in taupe metallic
• Dimensions in upflow position: 33.25″H x width varies by size: 14.25-24.5″ x 29″D
